Solar Power Thermal Collecting Water Heater
This solar power heater is specially designed for saving electric Energy. Pipe material is Pure copper. The overall dimension is in size of 2000 x 1000 x 80mm thick. Covered with low iron tempered glass..

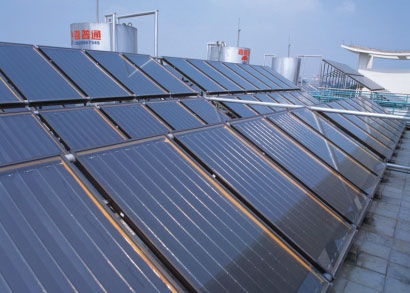

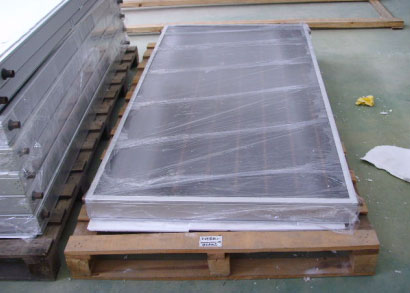

heater1 Solar panels   heater2 Package of the panels

The installed area will be needed for 2 sq. metres. General speaking it is installed with an inclined angle and with certain space apart from others to make sure it can get the Sun beam. During the Sun shine days, the water temperature can reach up to 60 degree C.

A storage tank will be used for keeping the hot water for further usage.

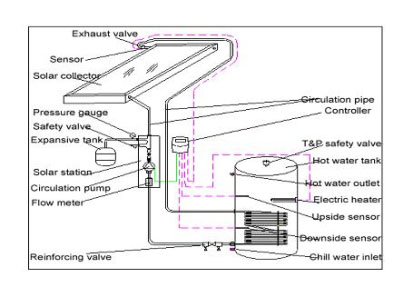

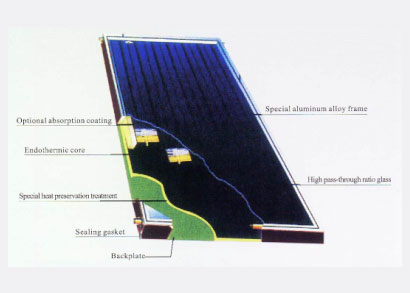

heater3 Schematic drawing   heater4 Internal construction
